KTR ROTEX 42 Technology Data

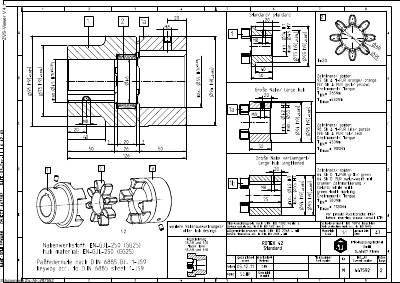

KTR ROTEX 42 Technology Data - cover page
Brand
KTR
Category
Other
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
99 KB
Published
10 July, 2012
Updated
20 July, 2012
MD5 checksum
7CAD89671A55AA419D4D8010C36127D0
PDF
KTR ROTEX 42 Technology Data PDF

About this manual

This document provides technical specifications for the KTR ROTEX 42 flexible shaft coupling. It lists various configurations based on the number of teeth on the sprocket wheel and the type of hub (standard or large hub), specifying the maximum torque (Tmax) and yield torque (Tyne) for each combination.

The document also details the material composition of the hubs, which is EN-GJL-250 (GG25), and references specific standards for surface quality (DIN ISO 1302) and protection marks (ISO 16016). It includes a table of part numbers and manufacturing dates for specific variants. This manual is written in German.

What's inside

  • Standard/standard
  • Zahnkranz/ spider
  • GroBe Nabe/ large hub
  • Drehmoment/ Torque
  • Nabenwerkstoff
  • Oberflaechenguete
  • General tolerances
  • Scale : Size

Specifications

Hub MaterialEN-GJL-250 (GG25)
Surface Quality StandardDIN ISO 1302 Line 2
Protection Mark StandardISO 16016
General TolerancesDIN ISO 2768 - mH

Frequently asked questions

What is the maximum torque rating for the ROTEK 42 with a large hub?

The maximum torque rating is 1120 Nm.

What material is used for the hubs of this coupling?

The hub material is EN-GJL-250 (GG25).

Is there a specific requirement before inserting the coupling?

You must consult KTR before inserting.
