JP-800.150 1”，150 l/min is a pneumatic manual vacuum pump from the German brand Rauscher. It has a maximum dry suction lift of 5 m, a maximum flow rate of 150 l/min, a maximum head of 70 m, can pass solids with a diameter of less than 4 mm, a maximum operating pressure of 7 bar, and a weight of 7.5/8.5/8.2/11.0 kg. It is available in PP, PVDF, Alu and Edelstahl (SS) materials.

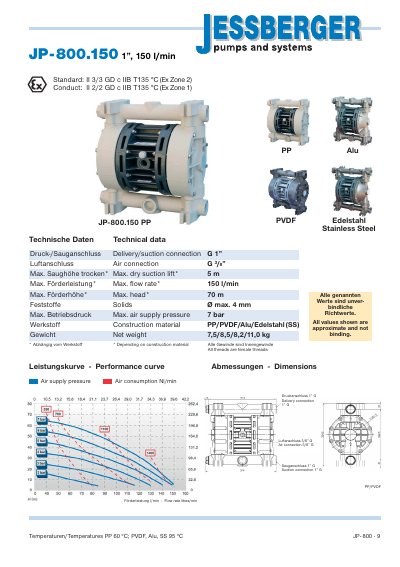

This document provides technical specifications for the Essberger JP-800.150 J pump and systems. The pump is available with a 1" delivery/suction connection and an air connection of G 4s". It is designed for use in hazardous areas, meeting standards for Ex Zone 2 (1", 150 min) and Ex Zone 1 (2/2 GD c IIB T135 °C).
| Delivery/suction connection | G 1" |
|---|---|
| Air connection | G 4s" |
| Max. dry suction lift | 5m |
| Max. flow rate | 150 I/min |
| Max. head | 70m |
| Max. air supply pressure | 7 bar |
| Max. solids | 4mm |
| Construction material | PP/PVDF/Alu/Edelstahl(SS) |
| Net weight (PP) | 7.5 kg |
| Net weight (PVDF) | 8.5 kg |
| Net weight (Alu) | 8.2 kg |
| Net weight (SS) | 11.0 kg |
| Max. temperature (PP) | 60 °C |
| Max. temperature (PVDF, Alu, SS) | 95 °C |
The maximum dry suction lift is 5 meters.
The maximum flow rate is 150 liters per minute and the maximum head is 70 meters.
The maximum air supply pressure is 7 bar.
