ITRON SAV SL-IZN.1/SL-IZM.1 Assembly Actuator Parts List

This is an ITRON 8H ON 50 actuator component manual, which mainly introduces the composition, specifications, and usage instructions of the actuator.

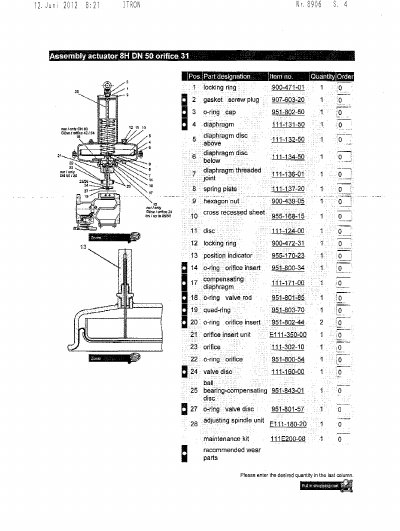

ITRON SAV SL-IZN.1/SL-IZM.1 Assembly Actuator Parts List - cover page
Brand
ITRON
Document type
Parts List
Language
German
Pages
13
File format
PDF
File size
303 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
32D8CBCED1071C05984EBE80D99A9B6A
PDF
ITRON SAV SL-IZN.1/SL-IZM.1 Assembly Actuator Parts List PDF

About this manual

This document serves as a technical reference for the ITRON SAV (Assembly Actuator) series, specifically models SL-IZN.1 and SL-IZM.1. It provides detailed lists of components required for assembly, maintenance kits, and recommended wear parts.

The guide covers various connection sizes including DN 25, DN 50, and NPT threads. It details specific part numbers for items such as diaphragms, valve discs, springs, O-rings, and conversion kits used to adapt between different model variants. This manual is written in German.

What's inside

  • Assembly actuator parts
  • Maintenance kit
  • Recommended wear parts
  • Conversion kit SL-IZN.1 to SL-IZM.4
  • Conversion kit SL-IZM.1 to SL-IZN.4
  • Ventilkorper DN 50 components
  • Regaleinrichtung components

Specifications

Connection sizes supportedDN 25, DN 50, NPT
Document NumberNr. 8906

Frequently asked questions

What is the stated orifice size for this assembly actuator?

The document lists an assembly actuator with a 8H DN 50 orifice.

Which valve body sizes are covered by the parts list?

This list covers valves for DN 25, DN 50, and 1" NPT connections.
