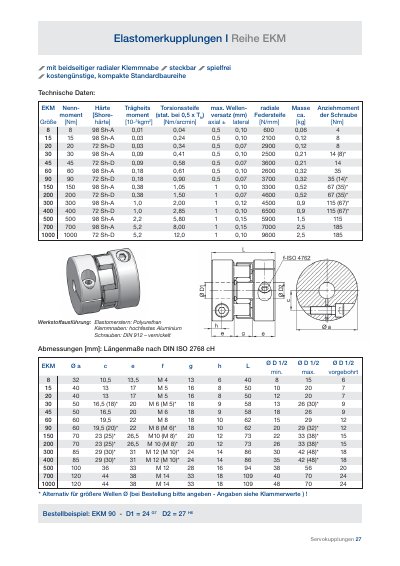

This document describes the technical parameters and characteristics of an elastomeric coupling called EKM. The coupling features a polyurethane elastomer star, high-strength aluminum clamp hubs, and nickel-plated screws. It has characteristics such as maximum radial and axial misalignment, torsional stiffness, and mass.
This document provides technical specifications for the JAKOB Antriebstechnik EKM series of elastomer couplings. It details various models available in the standard range, including size designations such as 8 through 1000.
The datasheet includes specific parameters for each model, covering nominal torque, hardness (Shore A or D), mass of inertia, torsional stiffness, and maximum axial/lateral runout. It also lists physical dimensions like shaft diameter and bolt sizes required for installation. This manual is written in German.
| Series Type | EKM 1 Reihe EKM |
|---|---|
| Tolerance Class | DIN ISO 2768 cH |
