Revo sets new standards in terms of performance in the field of drive technology and is recognized throughout the industry for its high quality and innovation. These innovative features, combined with superior manufacturing expertise, lead to continuous progress in product technology. The Revo rotary actuators are primarily used for actuating valves with a 90° angle, such as ball valves, butterfly valves, as well as shut-off and throttle valves, but can also be used for other applications with rotational movements of 180°, multiple positions, or other pivot angles.
Revo rotary actuators are designed for the operation of valves with 90° switching angles, such as ball valves and butterfly valves, as well as other applications with rotational movements. The product range includes standard models with various nominal torques and connection flanges, adaptable to different applications through numerous options. These actuators can be used for On/Off applications or as regulating drives.

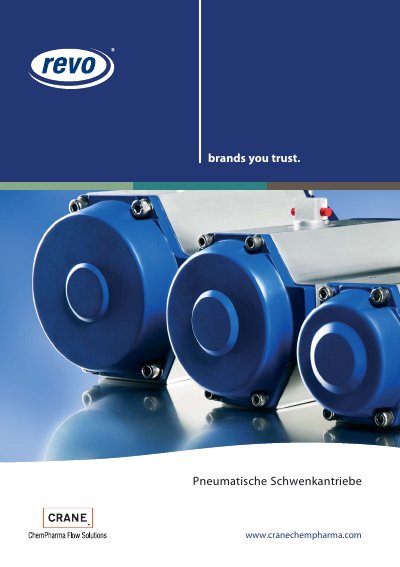

The document highlights key construction features, including patented pressure-relieved shafts, robust aluminum housings, and self-lubricating piston sliding surfaces. It provides detailed torque tables for double-acting and single-acting models across various air pressures and lists specific dimensional data for different actuator sizes. This manual is written in German.
| Product Type | Pneumatic Rotary Actuators |
|---|---|
| Shaft Type | Pressure-relieved shaft |
| Housing Material | Robust aluminum |
The maximum torque for the RD H15 model at a supply air pressure of 10 bar is 11,752 Nm.
