BETA C1-P304L-S1N-B1-K1-Y-X2 Pressure Switch Product Leaflet

This document describes the features and characteristics of BETA's Druck- & Temperaturschalter products. It is a highly user-friendly product that is suitable for various industries and meets various specification requirements.

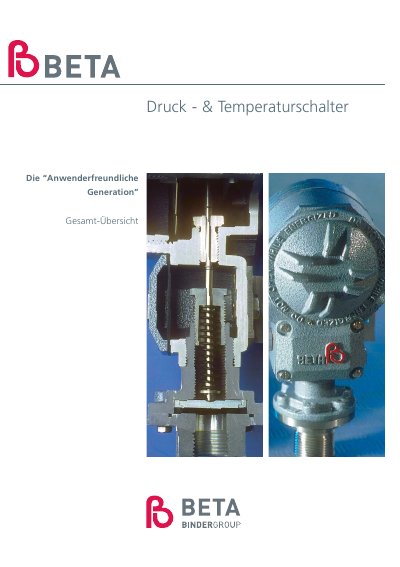

BETA C1-P304L-S1N-B1-K1-Y-X2 Pressure Switch Product Leaflet - cover page
Brand
BETA
Category
Other Electronics
Document type
Product Leaflet
Language
German
Pages
31
File format
PDF
File size
1002 KB
Published
10 July, 2012
Updated
29 September, 2023
MD5 checksum
7C90FA980A8CC2FF4543139D6DDD0911
PDF
BETA C1-P304L-S1N-B1-K1-Y-X2 Pressure Switch Product Leaflet PDF

About this manual

This document introduces the BETA 'User-Friendly Generation' of pressure and temperature switches. It highlights the device's reliability, featuring a self-centering piston that protects against high pressure surges and vibrations. The switch is designed for a wide range of industrial applications and offers various material combinations for media contact parts. This manual is written in German.

What's inside

  • Anwenderfreundliche Generation
  • Das BETA-Prinzip
  • Die Vorteile
  • Modellauswahl
  • Einstellbereich Druckschalter
  • Prozessanschluss
  • Zulassungen

Specifications

Protection ClassIP 66
Operating Temperature (Standard)-30 to +80°C
Reproducibility+ 0.2%
Adjustment Range (P304L)20 - 240 mbar

Frequently asked questions

What is the principle of the BETA pressure switch?

It uses a high-quality self-centering piston that transfers pressure directly from the membrane to the piston rod without translations or other mechanisms.

Is the BETA pressure switch certified for explosive atmospheres?

Yes, it holds ATEX certification (KEMA CE 0344) and PED certification (TUV CERT. CE-0035).

What materials are available for the process connection?

Standard materials include Aluminum, Stainless Steel, Monel, and Brass, with other materials like PVC and Hastelloy available upon request.
