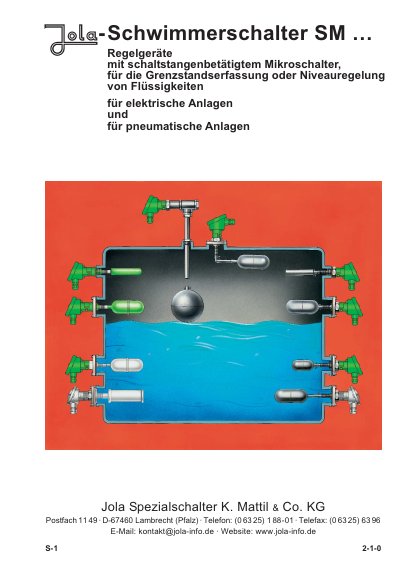

This document introduces the Schwimmerschalter SM series produced by Jola Spezialschalter K. Mattil & Co. KG. The Schwimmerschalter SM is used for level detection or regulation of liquids in electrical and pneumatic systems. The series includes different types of Schwimmerschalter for lateral or top installation, with options for Mikroschalter or inductive proximity sensors. Please refer to the actual product for specific specifications and technical data.
This document describes the Jola SM.../1 and SM.../3 float switches, which are used for limit position detection or liquid level control in electrical and pneumatic installations. The devices operate by activating a microswitch when the liquid level rises or falls, triggering a changeover switch. This manual is written in German.
| Voltage | max. 250 V AC/DC |
|---|---|
| Switching Power | max. 1000 VA |
| Operating Temperature | 0°C to +90°C |
| Protection Class | IP 68 |
No, the devices are not suitable for use in turbulent liquids such as those in stirred tank vessels.
The switch operates using a microswitch that acts as a changeover switch when activated by the floating body.
