Barksdale D1T/D2T Metal Diaphragm Pressure Switches Technical Data

D1T/D2T Metal Diaphragm Pressure Switches are mechanical single/dual pressure switches, repeatability ±1.0% at constant temperature

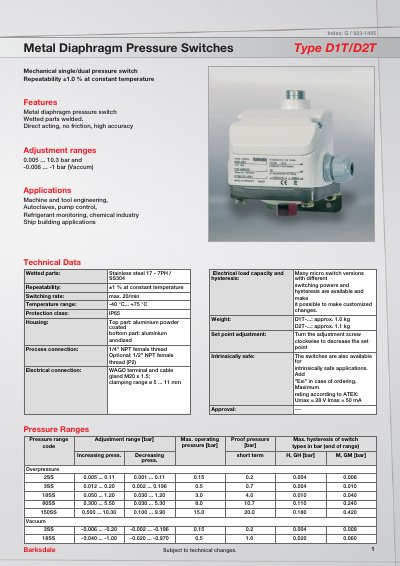

Barksdale D1T/D2T Metal Diaphragm Pressure Switches Technical Data - cover page
Brand
Barksdale
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
1022 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
1D57972D7DBF42B880DE9F1159052C22
PDF
Barksdale D1T/D2T Metal Diaphragm Pressure Switches Technical Data PDF

About this manual

This document provides technical information for the Barksdale Type D1T/D2T Metal Diaphragm Pressure Switches. These are mechanical single or dual pressure switches featuring wetted parts made of welded stainless steel 17-7PH. The switches offer high accuracy with a repeatability of +1.0% at constant temperature and are available in various adjustment ranges for both positive pressure and vacuum applications.

What's inside

  • Features
  • Applications
  • Technical Data
  • Pressure Ranges
  • Electrical Ratings
  • Options
  • Order Code

Specifications

Repeatability+1.0 % at constant temperature
Temperature range-40 °C... +75 °C
Protection classIP65
Process connection (standard)1/4" NPT female thread
Electrical connection glandM20 x 1.5

Frequently asked questions

What are the applications for these switches?

They are used in machine engineering, autoclaves, pump control, refrigerant monitoring, chemical industry, and ship building.

Are intrinsically safe versions available?

Yes, switches are available for intrinsically safe applications by adding "Exi" to the order code.
