Tecsis DD 700 j series pressure sensors are Tecsis' top products, with high accuracy, reliability, corrosion resistance and mechanical durability, suitable for all pressure measurement tasks: in production, development or the laboratory.

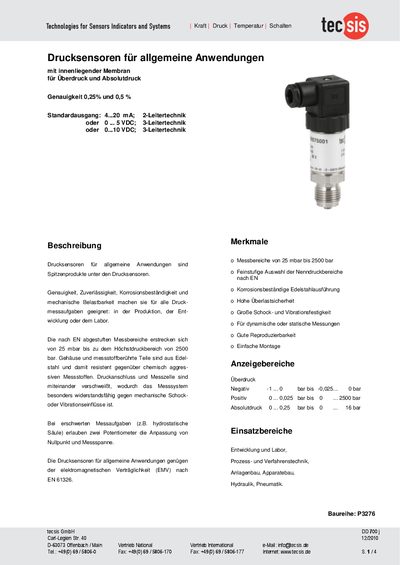

This document provides technical specifications for the Tecsis P3276 series of pressure sensors designed for general applications. These sensors feature an internal membrane suitable for measuring both overpressure and absolute pressure with high accuracy (0.25% and 0.5%). The housings and process-contact parts are made of stainless steel to ensure corrosion resistance against chemically aggressive media. This manual is written in German.
| Accuracy (BFSL) | < +0.2 % v.EW. |
|---|---|
| Pressure Range (Absolute) | 0...16 bar |
| Housing Material | Stainless Steel (Edelstahl) |
| Electrical Connection | DIN EN 175301-803 Form A / M12x1 |
| Operating Temperature Range | -20...80°C |
The nonlinearity and hysteresis are less than +0.2% v.EW.
The process-contact parts are made of stainless steel.
