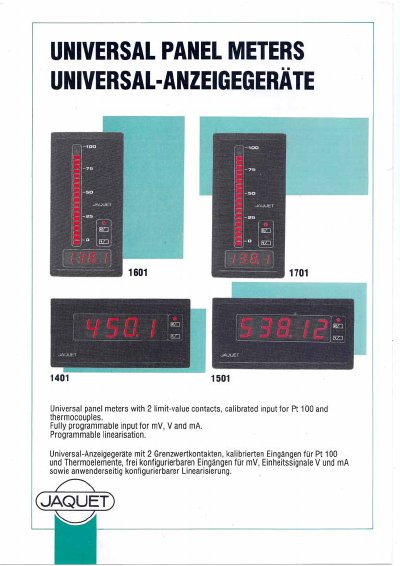

This document provides technical specifications for the Jaquet Universal Panel Meters series, covering models 1401, 1501, 1601, and 1701. These microprocessor-controlled instruments feature fully programmable inputs suitable for Pt 100 resistance signals, thermocouples (J, K, S, R, N), and standard voltage/current signals.
The series includes models with varying display capabilities: the 1401 and 1501 offer 4-digit and 5-digit displays respectively, while the 1601 and 1701 feature bar graph indicators. All units include two programmable limit-value contacts with relay outputs and support user-defined linearization.
| Display Type | 7-segment or Bar graph |
|---|---|
| Accuracy (Type 1401/1501) | better than 0.3% |
| Accuracy (Type 1601/1701) | max. error 0,2% of reading |
| Power Supply (Standard) | 220 VAC + 15%, 47...63 Hz |
| Microprocessor | 68 HC 11 |
| Operating Temperature | -20/+80°C (Storage) |
The instruments support Pt 100 resistance signals, thermocouples J and K (and S, R, N for type 1501), 0-100 mV DC, 0-1 V DC, 0-10 V DC, 0-20 mA and 4-20 mA.
Yes, all models feature 2 limit-value contacts with programmable levels and status, indicated by an LED.
Yes, the Type 1501 model includes RS 232 communication capabilities.
