MATRIX valves are high-performance individual and modular valves suitable for any industrial application of pneumatic systems. They feature a unique and innovative technology with frictionless and low-mass movement, providing a long lifespan and reducing maintenance intervals and operating costs. The high repeatability and reliability enable consistent quality and productivity. The smooth mechanics allow for extremely fast switching times and a high frequency. The modular construction of the multivalves allows for arranging multiple valves in a compact space, simplifying the pneumatic system.

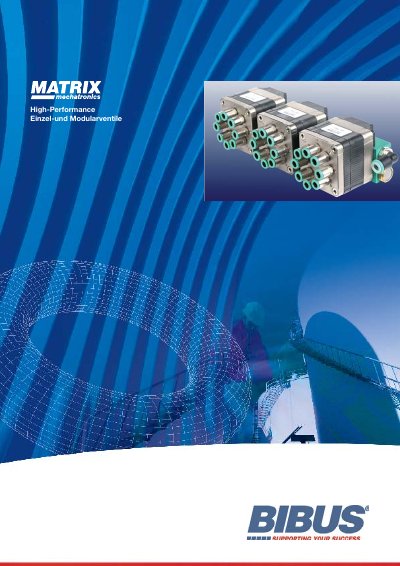

The MATRIX 750 series represents a high-performance technology for mechatronics, featuring single and modular valves designed for pneumatic systems. The technology utilizes a unique frictionless mechanism with minimal moving masses, enabling a lifespan of over 500 million cycles and extremely fast switching times of less than 1 ms. This design significantly reduces maintenance intervals and operating costs while ensuring high repeatability and reliability. This manual is written in German.
| Lifespan | > 500 million cycles |
|---|---|
| Switching time (open) | < 1 ms |
| Switching frequency | up to 2,000 Hz |
| Max flow rate | 700 Nl/min |
| Pressure range | 0-8 bar |
| Vacuum range | 10⁻⁵ Torr |
| Operating voltage | 12VDC; 24VDC |
| Protection class | IP62 |
| Dimensions | 12x41x39,5 mm |
| Weight | 135g |
The maximum switching frequency for the 12/24V version is 100 Hz.
The valves can operate at frequencies of up to 2,000 Hz.
Depending on the configuration, the valves achieve a flow rate of 50-700 Nl/min.
The valves operate within a pressure range of 0-8 bar.
