GK03 Limit Switches are suitable for bypass level indicators. Multiple switches can be installed on the tube surface without interference. The switch position can be set using a ring magnet or the float.

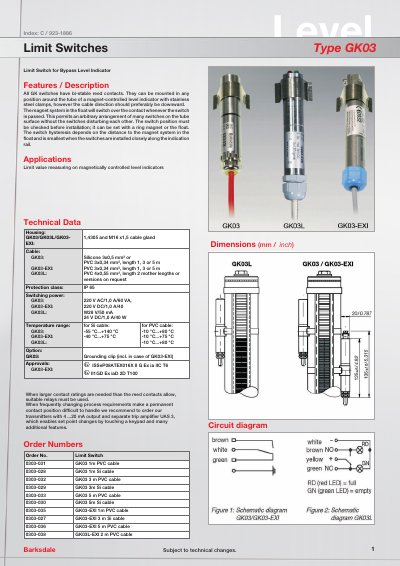

The document describes the Barksdale GK03 series of limit switches, which feature bi-stable reed contacts suitable for mounting on stainless steel clamps around a tube. These switches are designed for use with magnetically controlled level indicators and can be arranged arbitrarily along the tube surface without interfering with each other.
| Protection Class | IP 65 |
|---|---|
| Switching Power (GK03) | 220 V AC/1,0 A/60 VA |
| Switching Power (GK03-EXI) | 220 V DC/1,0 A/40 W |
It is used for limit value measuring on magnetically controlled level indicators.
Yes, they can be mounted in any position around the tube of a magnet-controlled level indicator with stainless steel clamps.
The GK03 is available with Silicone 3x0,5 mm² or PVC 3x0,34 mm cables in lengths of 1, 3, or 5 meters.
