This document describes a centrifugal pump from ALLWEILER GmbH, Germany, called SVG 111 G11T VI.60. The pump is designed for handling methanol as the conveying medium, with an operating temperature of 20°C, suction pressure, an outlet pressure of approximately 2 bar, and a flow rate of 0.8. The pump has a power requirement of 0.3 and is suitable for industrial applications, with features including high temperature resistance and corrosion resistance.

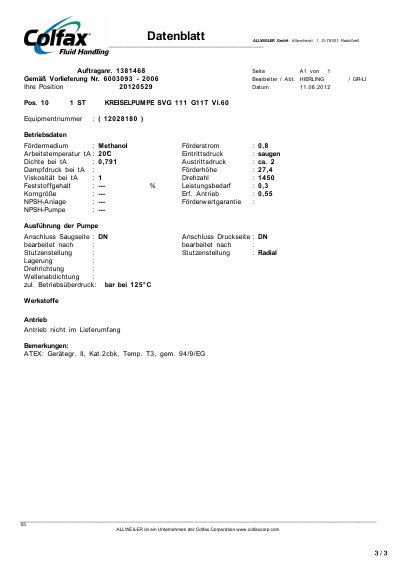

This document is a technical datasheet for the ALLWEILER SVG 111 G11T VI.60 circulating pump (Kreispumpe). It provides specific operating data for a configuration handling methanol at 20°C, including flow rate, pressure, and power requirements. The pump is manufactured by ALLWEILER GmbH, a company belonging to the Colfax Corporation. This manual is written in German.
| Product Type | KREISELPUMPE SVG 111 G11T VI.60 |
|---|---|
| Manufacturer | ALLWEILER GmbH |
| Parent Company | Colfax Corporation |
| Fluid Medium | Methanol |
| Flow Rate | 0.8 |
| Operating Temperature | 20 |
| Density at Operating Temp | 0.791 |
| Vapor Pressure at Operating Temp | 2 |
| Delivery Head | 27.4 |
| Rotational Speed | 1450 |
| Solid Content | 0.3 |
| Temperature Limit for Overpressure | 125 C |
| Drive Status | Not included |
| ATEX Group | II, Cat. 2 |
| ATEX Temperature Class | T3 |
The required drive power is 0.55 kW.
The required suction head guarantee is 27.4 meters.
