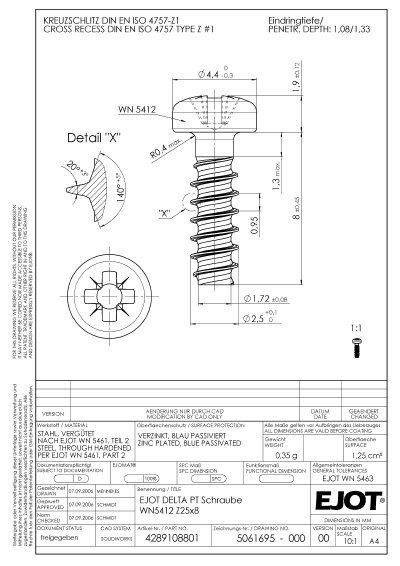

This document provides technical specifications for the EJOT WN5412 Z25x8 screw. It defines the cross-recess type as DIN EN ISO 4757 TYPE Z #1 with a penetrator depth of 1.08/1.33 mm.
The product is made of through-hardened steel and features zinc plating with blue passivation. All dimensions listed are valid before the application of any coating.
| Cross Recess Standard | DIN EN ISO 4757 TYPE Z #1 |
|---|---|
| Penetrator Depth | 1.08/1.33 mm |
| Material | Steel, Through Hardened |
The penetration depth is 1.08/1.33.
The material is steel, through hardened.
