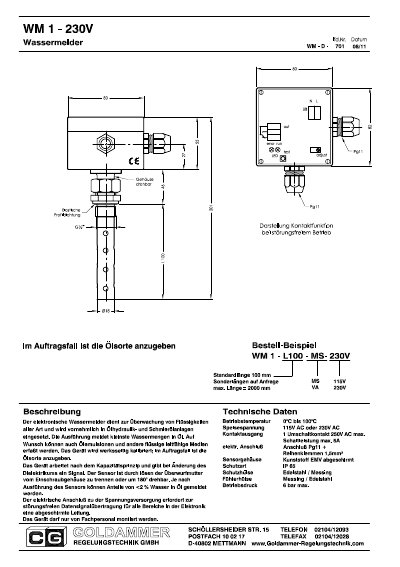

The Goldammer WM 1 is an electronic water detector designed for monitoring liquids of all kinds, primarily used in oil hydraulic and hydraulic systems. It operates on the capacitance principle to detect the smallest amounts of water in oil and can be configured to detect water in oil emulsions and other liquid dielectric media upon request. The device is factory calibrated, but the oil type must be specified for custom orders. This manual is written in German.
| Operating Temperature | 0°C to 100°C |
|---|---|
| Supply Voltage | 115V AC or 230V AC |
| Contact Output | 1 changeover contact 250V AC max. |
The device is designed for use with fluids where the operating temperature ranges from 0°C to 100°C.
The contact output is rated for a maximum of 250V AC.
