The 7072 series quick-action valve is a valve suitable for use in the chemical, food industry and pharmaceuticals. It features quick, trouble-free hose replacement, no dead spaces and undercuts, steam and hot air sterilization, no contact of the medium with the valve, minimum flow setting and pneumatic drive.

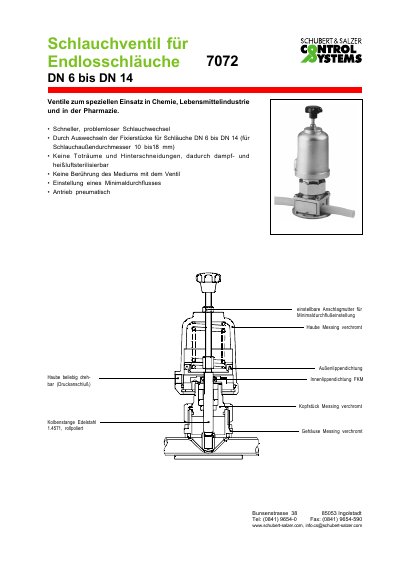

The Schubert & Salzer 7072 is a pneumatic hose valve specifically designed for use in the chemical, food, and pharmaceutical industries. It features an exchangeable fixing piece system allowing for quick and problem-free hose changes for hoses with outer diameters from DN 6 to DN 14 (10 to 18 mm). The design ensures no dead volumes or undercuts, making it suitable for steam and hot air sterilization, while preventing any contact between the medium and the valve body. This manual is written in German.
| Nominal sizes (DN) | 6 - 8- 10 - 12 - 14 |
|---|---|
| Hose outer diameter | 10-12-14-16-18mm |
| Operating pressure | 0 - 4 bar |
| Control pressure | 2,5 - 10 bar |
| Medium temperature range | -30°C bis +170°C |
| Ambient temperature range | -30°C bis +60°C |
| Viscosity of medium | up to 0,001 m²/s (1000cSt) |
| Weight | 1,6 kg |
The valve is available in nominal sizes DN 6, 8, 10, 12, and 14.
The housing is made of chrome-plated brass to ensure no contact with the medium.
