Detailed introduction to the design parameters of the German VETEC 72.4 AT rotary cone valve, including fluid medium and pressure.

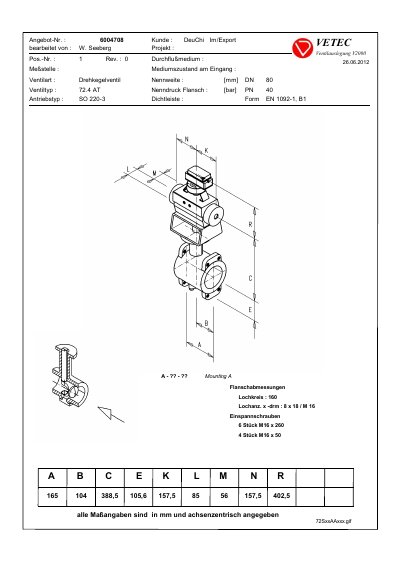

This document provides technical specifications for the VETEC 72.4 AT SO 220-3 rotary cone valve. It details the nominal size (DN 80) and nominal pressure (PN 40) of the valve, along with the specific drive type SO 220-3. The document also lists the sealing strip standard as EN 1092-1, B1.
Detailed dimensional data is provided for the flange measurements. The bolt circle diameter is 160 mm, and the bolt pattern consists of 8 holes with a diameter of 18 mm (M16). The document specifies the inclusion of 6 clamping screws of size M16 x 260 and 4 screws of size M16 x 50. This manual is written in German.
| Valve Type | Rotary Cone Valve |
|---|---|
| Nominal Size | DN 80 |
| Nominal Pressure | PN 40 |
| Drive Type | SO 220-3 |
| Sealing Strip Standard | EN 1092-1, B1 |
| Bolt Circle Diameter | 160 mm |
| Bolt Pattern | 8x 18/M 16 |
| Clamping Screws | 6 Stuck M16 x 260 |
The valve has a nominal size of DN 80.
The valve has a rated pressure of PN 40.
The bolt circle is 160 mm and the bolt holes are 8 x 18/M 16.
