EQ 48/72/96/144 K (K-Series) are Schneider Electric's rotary electromagnetic measuring devices, which are mainly used to measure AC currents and AC voltages with a working frequency range of 162/3 . 100 Hz.

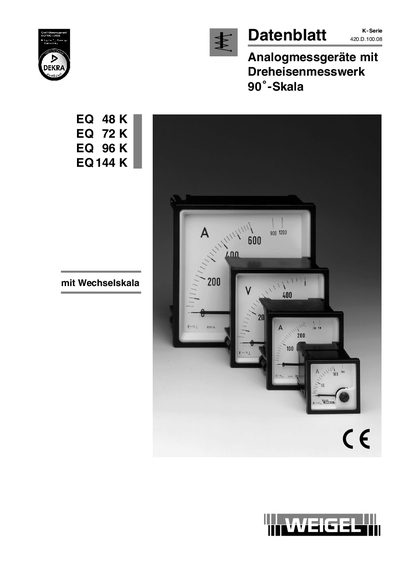

This datasheet describes the Weigel EQ 48K, EQ 72K, EQ 96K, and EQ 144K analog measuring instruments featuring a rotating iron movement and a 90° scale. These devices are primarily designed for measuring alternating currents and voltages within the standard technical frequency range of 16 2/3 to 100 Hz. This manual is written in German.
| Accuracy Class | 1.5 |
|---|---|
| Operating Temperature | -10 ... +55°C |
| Protection Class | IP 52 |
| Scale Deflection | 90° |
| Material | Polycarbonat |
The accuracy class is 1.5 according to DIN EN 60 051-1.
Yes, the installation position can be horizontal or according to specification between 15 and 165 degrees.
