The Mini Bypass Level Indicator Type BNA-S21/22 is the light version in the BNA-S family and is available in lengths up to 3000 mm, medium temperatures up to 150 °C and pressures up to 16 bar max.

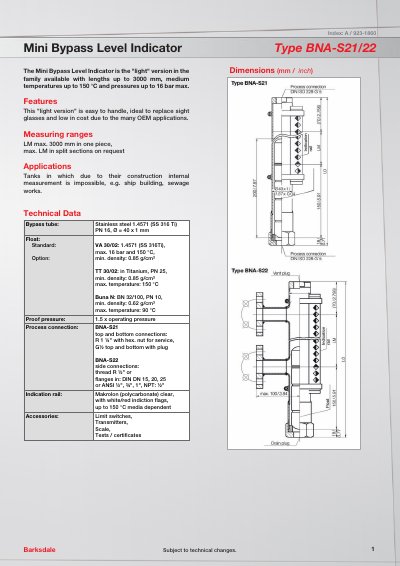

The document describes the Mini Bypass Level Indicator, a compact version of the sight glass family designed for applications where internal measurement is impossible due to tank construction. It features lengths up to 3000 mm and operates at medium temperatures up to 150 °C and pressures up to 16 bar.
| Max Length (one piece) | 3000 mm |
|---|---|
| Max Temperature | 150 °C |
| Max Pressure (PN) | 16 bar |
| Bypass tube material | Stainless steel 1.4571 (SS 316 Ti) |
| Indication rail material | Makrolon (polycarbonate) |
It is suitable for tanks where internal measurement is impossible due to construction, such as in ship building or sewage works.
The device can be manufactured in one piece with a maximum length of 3000 mm.
The standard float is rated for temperatures up to 150 °C and pressures up to 16 bar max.
The bypass tube is made of Stainless steel 1.4571 (SS 316 Ti).
