GR-SAE is a rubber expansion joint suitable for a variety of piping systems. It can reduce thermal and mechanical stresses in the piping system. The expansion joint is composed of a rubber bellows and two rotatable flanges. The bellows are made of high-strength synthetic fiber and have good wear resistance and tear resistance. The expansion joint also has good oil resistance and heat resistance. The expansion joint has a rated pressure of 16 bar and is suitable for various types of hydraulic oil.

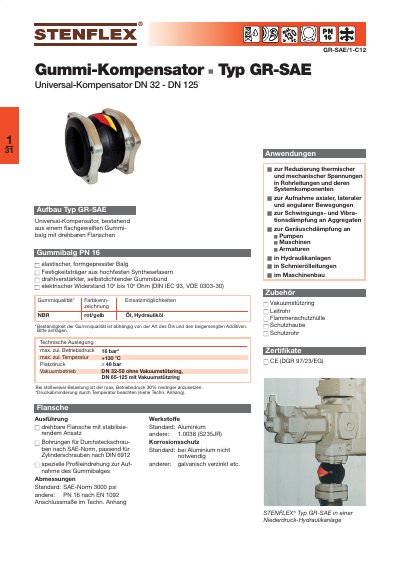

This document provides technical information for the Steinflex GR-SAE universal rubber compensator (Gummi-Kompensator). It is designed to reduce thermal and mechanical stresses in piping systems and absorb axial, lateral, and angular movements. The product features a flat-wound rubber bellows with accessible flanges made of aluminum or steel. This manual is written in German.
| Nominal size range | DN 32 - DN 125 |
|---|---|
| Burst pressure | >48 bar |
