The MAXIMAT C compact level switch is a device used to prevent water-based liquid containers from overfilling. It is a capacitive high-frequency device that operates by opening a circuit when liquid contacts the electrodes, causing the system to stop filling. This device has an IP65 rating and can operate in temperatures ranging from -20 to 60 degrees Celsius.

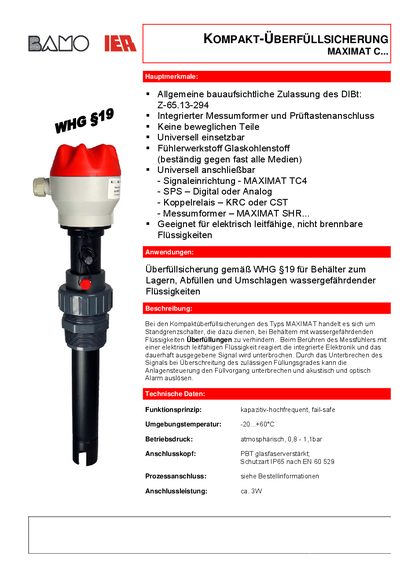

The document describes the BAMO MAXIMAT C... series of compact overflow protection devices (Kompakt-Überfllsicherung). These are stand-limit switches designed to prevent overfilling in containers holding water-endangering liquids. The device features an integrated measuring converter and test button connection, with no moving parts. This manual is written in German.
| Operating principle | capacitive high-frequency, fail-safe |
|---|---|
| Ambient temperature | -20...+60°C |
| Operating pressure | atmospheric, 0.8 - 1.1 bar |
| Protection class | IP65 according to EN 60 529 |
| Connection power | approx. 3W |
It operates on a capacitive high-frequency, fail-safe principle.
Yes, it is suitable for electrically conductive, non-flammable liquids.
No, there are no moving parts in this integrated measuring converter and test button connection unit.
