The document describes the features and characteristics of the NG 1000 series power supplies and DC/DC converters, including adjustable output voltage, stability, short-circuit protection, current limiting, etc. It provides specifications and output voltage range for AC/DC power supplies and DC/DC converters.

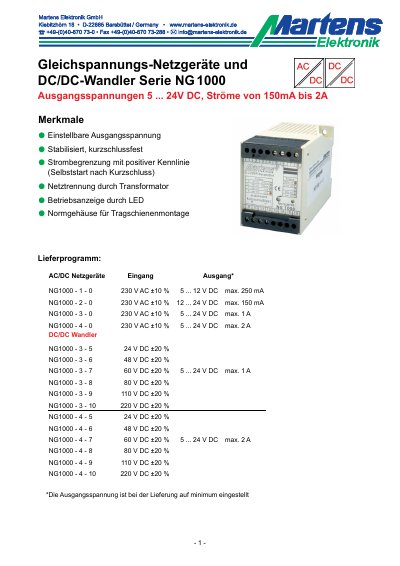

This document provides technical data for the Martens Elektronik NG 1000 series, which includes both AC/DC power supply units (Netzgeräte) and DC/DC converters. The series offers output voltages ranging from 5V to 24V DC with currents between 150mA and 2A. This manual is written in German.
| Frequency range | 47 ... 63 Hz |
|---|---|
| Operating temperature (DC/DC) | -10... +40°C |
| Output voltage range (AC/DC models) | 5 ... 24V DC |
| Ripple voltage (AC/DC models) | < 20 mV |
| Housing material | Makrolon UL94V-1 |
| Mounting type | DIN rail TS35 |
They can be mounted on a TS35 DIN rail or with two M4 screws.
The ripple voltage is less than 20 mV.
