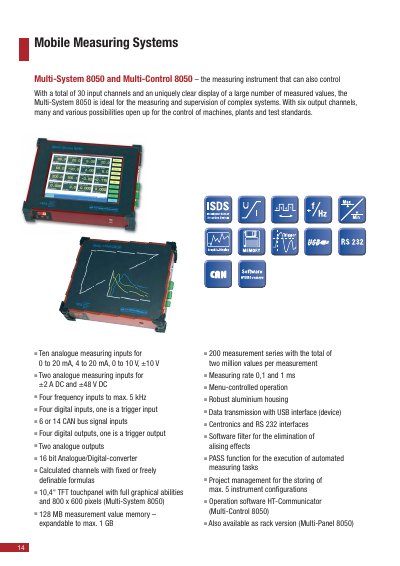

Multi-System 8050 and Multi-Control 8050 are measuring instruments that can also control. The Multi-System 8050 is ideal for measuring and supervising complex systems with a total of 30 input channels and a uniquely clear display of a large number of measured values. With six output channels, many and various possibilities open up for the control of machines, plants and test standards.
The document introduces the Mobile Measuring Systems, specifically the Multi-System 8050 and Multi-Control 8050. These instruments are designed for the measurement and supervision of complex systems, offering a total of 30 input channels and six output channels to control machines, plants, and test standards.
| Total Input Channels | 30 input channels |
|---|---|
| Analogue Measuring Inputs (10x) | 0 to 20 mA, 4 to 20 mA, 0 to 10 V, +10V |
| Analogue Measuring Inputs (2x) | +2 ADC and +48 V DC |
| Frequency Inputs | Four frequency inputs to max. 5 kHz |
| Digital Inputs | Four digital inputs, one is a trigger input |
| CAN Bus Signal Inputs | 6 or 14 CAN bus signal inputs |
| Digital Outputs | Four digital outputs, one is a trigger output |
| Analogue Outputs | Two analogue outputs |
| A/D Converter Resolution | 16 bit Analogue/Digital-converter |
| Display Type (Multi-System 8050) | 10,4" TFT touchpanel with full graphical abilities and 800 x 600 pixels |
| Measurement Value Memory | 128 MB measurement value memory — expandable to max. 1 GB |
| Measuring Rate | 0,1 and 1 ms |
It is ideal for the measuring and supervision of complex systems.
With six output channels, many and various possibilities open up for the control of machines, plants and test standards.
Yes, it is also available as a rack version called Multi-Panel 8050.
