E.G.O. 55.13522.010 Thermal Cut-out Technical Data Sheet

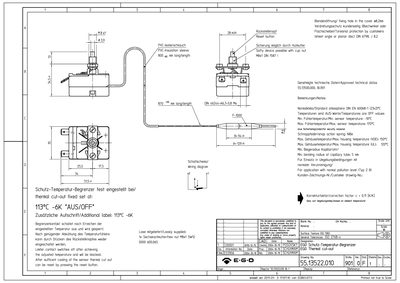

E.G.O. 55.13522.010 Thermal Cut-out Technical Data Sheet - cover page
Brand
E.G.O.
Document type
Datasheet
Language
German
Pages
1
File format
PDF
File size
125 KB
Published
10 July, 2012
Updated
23 July, 2012
MD5 checksum
FD7C1183AD26575E0AAB37088584A8C4
PDF
E.G.O. 55.13522.010 Thermal Cut-out Technical Data Sheet PDF

About this manual

This document provides technical specifications for the E.G.O. model 55.13522.010 thermal cut-out. It includes approved data regarding sensor temperature ranges, housing temperature limits under different safety standards (VDE/UL), and mechanical constraints such as minimum bending radius. This manual is written in German.

What's inside

  • Dimensions
  • Temperature Limits
  • Wiring Diagram
  • Reset Function

Specifications

Min. sensor temperature-10°C
Max. sensor temperature170°C
Max. housing temperature (VDE)150°C
Max. housing temperature (UL)120°C

Frequently asked questions

What is the correction factor for ambient temperature?

The correction factor is c = 0,11 [K/K].

What is the maximum sensor temperature for this thermal cut-out?

The maximum sensor temperature is rated at 170°C.

What is the minimum bending radius for the capillary tube?

The minimum bending radius of the capillary tube must be 5 mm.
