The LM 16 is a type of cylinder. It has 3 specifications with strokes of 30mm, 60mm, and 90mm. The weights are 1.0kg, 1.0kg, and 0.8kg, respectively. The maximum thrust is 104N and the maximum pull is 121N. The working pressure is 6 bar.

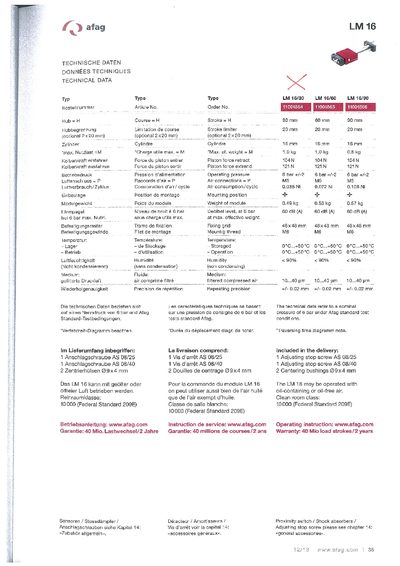

This document provides technical specifications for the AFAG LM 16 series of pneumatic cylinders, available in stroke lengths of 30 mm, 60 mm, and 90 mm. The data includes details on piston force, operating pressure, air consumption, and mounting dimensions. This manual is written in German.
| Stroke Lengths | 30 mm, 60 mm, 90 mm |
|---|---|
| Piston Force (Retract) | 104N |
| Piston Force (Extend) | 121N |
| Operating Pressure | 6 bar +/-2 |
| Mounting Thread | M6 |
| Temperature Range | -20°C...+450°C |
| Humidity | < 90% |
| Clean Room Class | 10000 (Federal Standard 209E) |
The delivery includes one adjusting stop screw AS 08/25, one adjusting stop screw AS 08/40, and two centering bushings 9x4 mm.
Yes, the LM 16 may be operated with oil-containing or oil-free air.
The warranty covers 40 million load strokes or 2 years.
