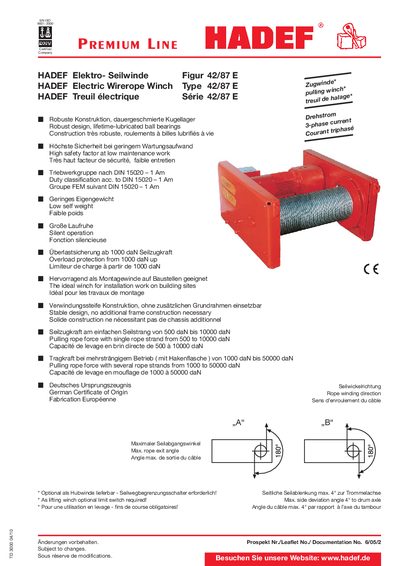

This document is a brochure for the HADEF Electric Wirerope Winch type 42/87 E. It mainly introduces the features of the winch, including: the winch has a robust construction and lifetime-lubricated ball bearings; the winch has a high safety factor and low maintenance; the winch meets the DIN 15020 – 1 Am standard; the winch has a low self weight and runs smoothly; the winch has a 1000 daN overload protection; the winch is ideal for installation work on building sites; the winch has a strong torsional stiffness and does not require an additional base frame; the winch has a single rope pulling force from 500 daN to 10000 daN; the winch has a multi-rope pulling force (with hook bottle) from 1000 daN to 50000 daN.
This document presents the HADEF Premium Line 42/87 E electric wirerope winch, designed for robust construction with lifetime-lubricated ball bearings and low maintenance requirements. It features a stable design suitable for installation work on building sites without the need for an additional frame.
| Pulling rope force (single strand) | 500 to 10000 daN |
|---|---|
| Pulling rope force (multi-strand) | 1000 to 50000 daN |
| Duty classification | DIN 15020 - 1 Am |
| Control voltage | 42 V |
| Insulation class | F |
| Protection class | IP 54 |
The maximum side deviation angle is 4 degrees to the drum axle.
Yes, the Type 42/87 P pneumatic wirerope winch is also available.
