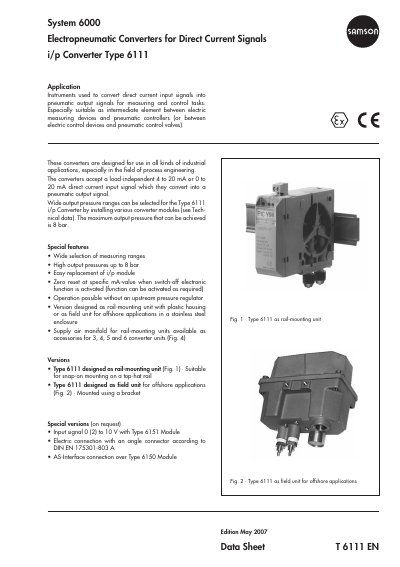

System 6000 Electropneumatic Converters for Direct Current Signals i/p Converter Type 6111 are instruments used to convert direct current input signals into pneumatic output signals for measuring and control tasks. They are especially suitable as intermediate elements between electric measuring devices and pneumatic controllers (or between electric control devices and pneumatic control valves). These converters are designed for use in all kinds of industrial applications, especially in the field of process engineering. The converters accept a load-independent 4 to 20 mA or 0 to 20 mA direct current input signal which they convert into a pneumatic output signal. Wide output pressure ranges can be selected for the Type 6111 i/p Converter by installing various converter modules. The maximum output pressure that can be achieved is 8 bar.
The document describes the Samson Type 6111 i/p Converter, a device designed to convert direct current input signals (4-20 mA or 0-20 mA) into pneumatic output signals for industrial measuring and control tasks. It is suitable as an intermediate element between electric devices and pneumatic controllers.
| Input signal range | 4 to 20 mA or 0 to 20 mA |
|---|---|
| Maximum output pressure | 8 bar |
| Ambient temperature range | -20 to 70 °C |
| Degree of protection (Rail-mounting) | IP 20 |
| Weight (Field unit) | 1.9 kg |
The maximum achievable output pressure for the Type 6111 converter is 8 bar.
The maximum output pressure that can be achieved is 8 bar.
Operation is possible without an upstream pressure regulator, though supply air must not exceed 10 bar.
