ALLWEILER AEB1L51-IE/011P01 -- 113P P5846 technology data

Allweiler pump, model AEB1 L51-IE/011 P01 113P P5846, working temperature 140℃, flow rate 50 L/min, pressure 3.3 bar, power 0.67 kW

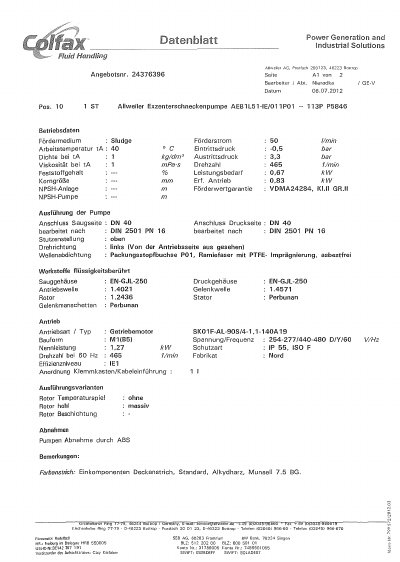

ALLWEILER AEB1L51-IE/011P01 -- 113P P5846 technology data - cover page
Brand
Allweiler
Document type
Product Leaflet
Language
German
Pages
2
File format
PDF
File size
69 KB
Published
10 July, 2012
Updated
30 September, 2023
MD5 checksum
8A3EC97C7212276FF98FC551B66579B3
PDF
ALLWEILER AEB1L51-IE/011P01 -- 113P P5846 technology data PDF

About this manual

This document provides technical specifications and operating data for an Allweiler AEB1L51-IE/011PQ1 progressive cavity pump. The unit is designed to handle sludge with a capacity of 50 l/min at a differential pressure of 3.8 bar, driven by a Nord gear motor. This manual is written in German.

What's inside

  • Betriebsdaten
  • Ausführung der Pumpe
  • Werkstoffe
  • Antriebsart / Typ
  • Farbanstrich
  • Characteristic Curve

Specifications

Pump TypeProgressive Cavity Pump
Model NumberAEB1L51-IE/011PQ1 -- 113P P5846
Capacity50 l/min
Inlet Pressure-0.5 bar
Discharge Pressure23.3 bar
Speed465 r/min
Required Power0.83 kW
Discharge FlangeDN 40 DIN 2507 PN 16
Motor ManufacturerNord

Frequently asked questions

What is the pump capacity?

The pump has a flow rate of 50 l/min.

What is the required drive power?

The required drive power is 0.83 kW.
