This document is a product description sheet for the L3MF-060/120-IFOKSO-G three-spindle pump. It provides information on the pump's features and specifications, such as the transfer medium, flow rate, speed, and efficiency.

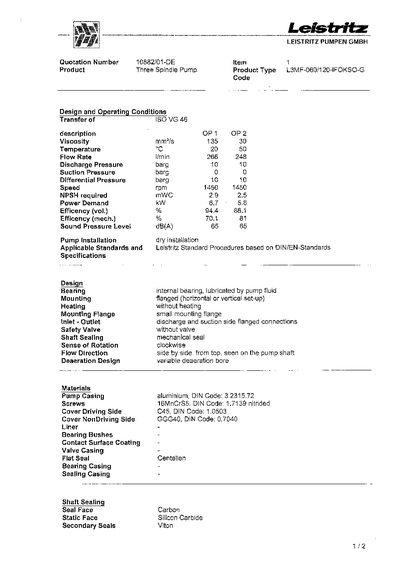

This document is a quotation for the Leistritz L3MF-060/120-IFOKSO-G, a three spindle pump designed for transferring ISO VG 46 fluid. The pump operates at a speed of 1450 rpm and features a mechanical seal with a variable deaeration bore. It is constructed with an aluminium casing and stainless steel metal parts, suitable for temperatures up to 50°C.
| Product Type | Three Spindle Pump |
|---|---|
| Fluid Viscosity | ISO VG 46 |
| Operating Temperature | 20 to 50 °C |
| Flow Rate | 266 to 248 l/min |
| Discharge Pressure | 10 to 40 barg |
| Speed | 1450 rpm |
| Power Demand | 6.7 to 5.8 kw |
| Metal Parts Material | Stainless Steel |
| Design Type | Single Acting Balanced |
The pump has a stated discharge pressure rating of 40 barg.
The internal bearing is lubricated by the pump fluid itself.
