This document introduces the specifications of Precision Resistor Type PBH, including resistance range, tolerances, temperature coefficient, applicable temperature range, load capacity, thermal resistance, dielectric withstanding voltage, inductance, stability, etc.

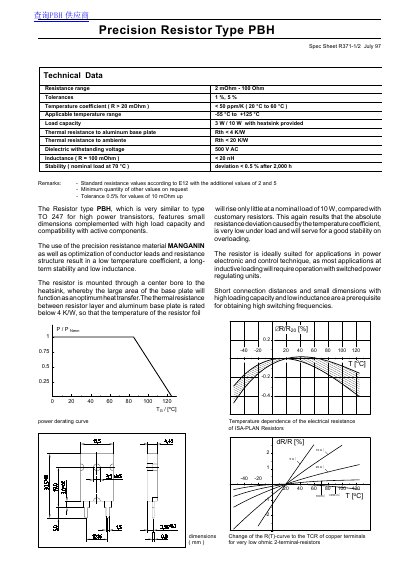

This document is a technical datasheet for the PBH precision resistor manufactured by Rhopoint Components. The component is designed for use in power electronics and control applications, featuring a high load capacity and low inductance. It utilizes Manganin material to ensure long-term stability and a low temperature coefficient.
| Resistance range | 2mOhm - 100 Ohm |
|---|---|
| Tolerances | 1%, 5% |
| Applicable temperature range | -55 °C to +125°C |
| Load capacity | 3W/10W with heatsink provided |
| Dielectric withstanding voltage | 500 V AC |
| Stability deviation | < 0.5 % |
The applicable temperature range is -55 °C to +125°C.
The available tolerances are 1% and 5%.
The load capacity is 3W or 10W when a heatsink is provided.
