BCV 71, BCV 72 are NPN surface mount Si-Epitaxial PlanarTransistors in a SOT-23 plastic case with a power dissipation of 250 mW.

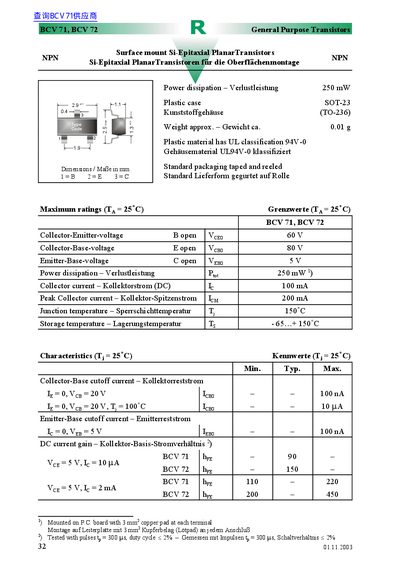

This document is a technical datasheet for the ALS BCV 71 and BCV 72 series of general-purpose transistors. These are NPN Si-Epitaxial Planar Transistors designed for surface mount applications in plastic SOT-23 cases.
The datasheet provides comprehensive electrical specifications, including maximum ratings such as collector-emitter voltage (60 V) and power dissipation (250 mW). It also lists typical characteristics like DC current gain, saturation voltages, noise figure, and capacitance values at 25°C.
| Power dissipation | 250 mW |
|---|---|
| Collector-Emitter voltage | 60 V |
| Collector current (DC) | 100 mA |
| Peak Collector current | 200 mA |
| Junction temperature | 150°C |
| Storage temperature | -65...+150°C |
| DC current gain (Typical) | 90 to 220 |
| Gain-Bandwidth Product | 100 MHz |
The transistors are housed in a plastic SOT-23 case.
They must be mounted with a 3 mm² copper pad at each terminal.
BCV 71 is marked as K7 and BCV 72 is marked as K8.
