EverAccess Proximity Readers, including the ERR-871, ERK-871 and ERM-871, incorporate state-of-the-art technology, reliable performance, easy-to-use features, and elegant appearance. The Readers generate a 125 kHz RF field that detects data from proximity cards. The data output format is Wiegand 26 or RS-232, which allows easy integration with most controllers, including EverAccess controllers. The Readers have 3 LED indicators which emit red, green, and yellow colors that indicate different values. The pigtail wiring on the back of the Readers is 18” long, enabling easy installation.

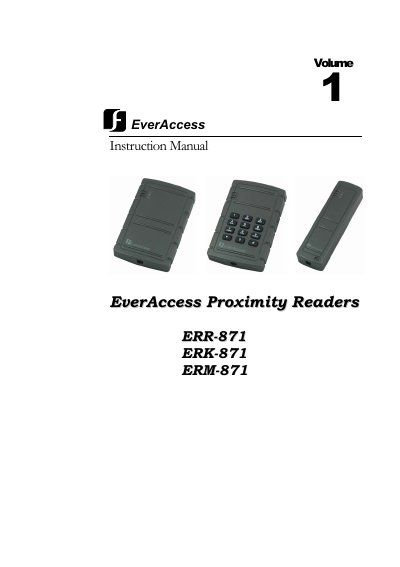

This manual covers the EverAccess Proximity Readers, specifically models ERR-871, ERK-871, and ERM-871. These readers utilize 125 kHz RF technology to detect data from proximity cards and output data in Wiegand 26 or Special RS-232 formats for integration with controllers like EverAccess.
The document provides detailed instructions on installation, including wiring definitions for power, ground, data lines (Wiegand and RS-232), and anti-tamper switches. It also outlines mounting procedures for regular, keypad, and mullion readers.
| Frequency | 125 KHz |
|---|---|
| Read range (Regular) | 5-12cm (2-4.7") |
| Read time | 200 ms |
| Power supply | 6.5V-18V DC, Max:150mA |
The readers support Wiegand 26 or Special RS-232 data output format.
Blue is TX and Gray is RX.
Yes, the reader includes a Normally Closed tamper switch.
