This manual introduces the safety operating instructions of the 5.6-inch color TFT LCD monitor.

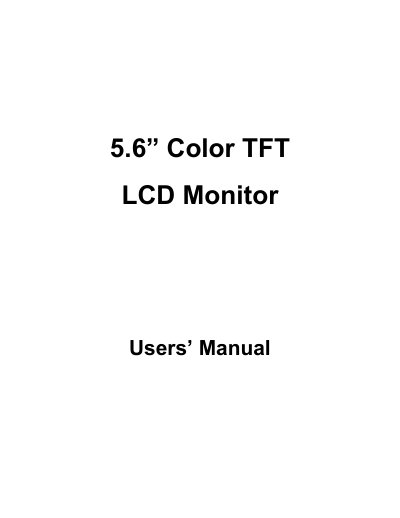

This document is the user manual for the EverFocus MEN2 5.6-inch Color TFT LCD Monitor. It covers essential safety precautions, including environmental limits and handling instructions, as well as detailed descriptions of the device's physical features and controller functions.
| Screen size | 5.6 inch |
|---|---|
| Active area | 111.36 (H) x 83.52 (V) mm |
| Dot matrix | 320 (H) x 240 (V) dots |
| Luminosity | 270 cd/m2 |
| Sound output | 200mW x build in 4cm speaker |
| Consumption power | DC 12V/600mA, 8W (MAX) |
| Power input | DC 9V ~ 20V |
The device operates between -40°C and +95°C.
Use the Reverse / Normal switch on the rear panel.
The ideal viewing angles are 30° upper, 10° lower, and 45° left/right.
