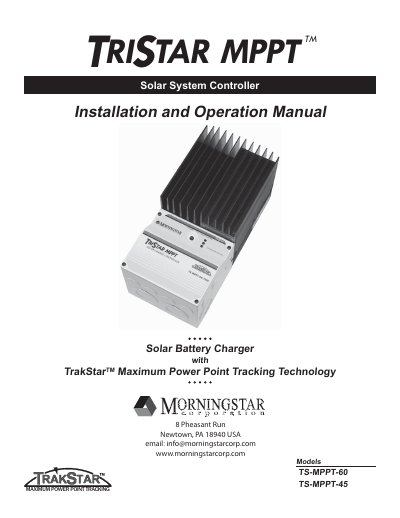

This is a product manual for TriStar MPPT series solar charge controllers
The TriStar MPPT (TS-MPPT) is an advanced maximum power point tracking solar battery charger designed for 12, 24, 36, and 48 Volt DC systems. It features a smart tracking algorithm to maximize energy harvest and includes self-diagnostics and electronic error protections to prevent damage from installation mistakes or system faults. The controller offers adjustable settings, multiple communication ports (RS-232, MeterBus, EIA-485, Ethernet), and terminals for remote battery temperature and voltage measurement.
| Maximum continuous battery current (TS-MPPT-45) | 45 amps |
|---|---|
| Maximum continuous battery current (TS-MPPT-60) | 60 amps |
| Supported DC system voltages | 12, 24, 36, and 48 Volt |
| Maximum solar input voltage | 150 Volt dc |
| Maximum allowable solar array input (TS-MPPT-45) | 36 amps Isc |
| Maximum allowable solar array input (TS-MPPT-60) | 48 amps Isc |
The maximum continuous battery current for the TS-MPPT-45 is 45 amps.
Yes, the TS-MPPT-60 model includes an Ethernet port for LAN/internet connections.
No, there are no user serviceable parts inside the controller, and it should not be disassembled or repaired by the user.
