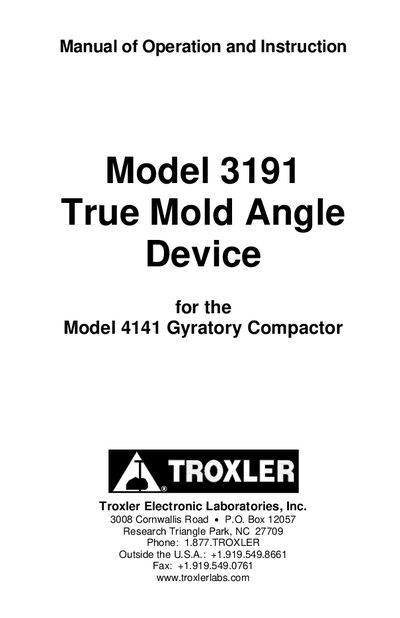

This manual describes how to use the Troxler 3191 True Mold Angle Device to measure the true mold angle of the Model 4141 Gyratory Compactor.
The Troxler Model 3191 True Mold Angle Device (TMA) is a passive measuring device designed to provide real-time display of compaction angles for the Model 4141 Gyratory Compactor. It attaches externally to the compactor frame, allowing operators to accurately verify the true angle of the mold during operation without interfering with normal testing procedures or sample capacity.
| Ambient Operating Temperature | 10 to 50°C (50 to 122 °F) |
|---|---|
| Power Requirements | 12 V de |
| Weight (Unit) | 3.6 kg (8 lb) |
No, the TMA is a passive measuring device that does not interfere with the normal operation of the gyratory compactor.
No, because the TMA is powered by the gyratory compactor, a separate power source is not necessary.
