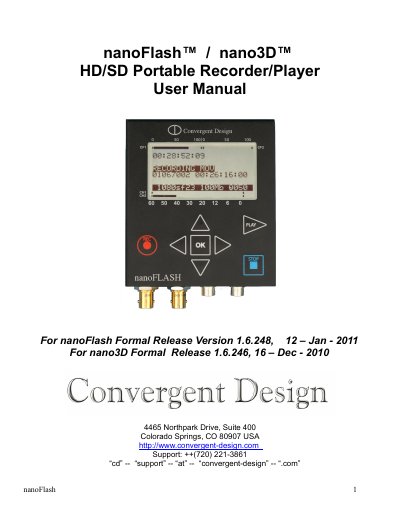

This document is the user manual for the nanoFlash™ / nano3D™ HD/SD portable recorder/player. The document describes the features and functionality of the nanoFlash™ and nano3D™.
The nanoFlash and nano3D are solid-state HD/SD recorders and players that utilize the Sony XDCAM 4:2:2 CODEC to write native Quicktime, MXF, or MPG files onto Compact Flash media. The device is designed for ruggedness, ease of use, and high-quality video recording in various environments.
| Supported Video Formats | Quicktime, MXF, MPG |
|---|---|
| Video Codec | Sony XDCAM 4:2:2 |
| Power Input | 100 to 240 VAC Input |
| Power Output | 12V DC @ 1.25A |
| Video Input | SDI or HDMI |
| Video Output | SDI or HDMI |
| Audio Input | 3.5 mm consumer line level or microphone |
| Audio Output | 3.5 mm headphone |
The device supports various qualified Compact Flash cards from manufacturers like Lexar, Transcend, Delkin, and SanDisk, with specific speed ratings required for different bit rates.
The manual provides a specific Firmware Update Procedure starting on page 20 to ensure the unit runs the latest version.
Yes, hot-swapping of CF cards during record is supported in firmware version 1.6.226 and later.
