AMD SD186ES/SD186EM Demonstration Board User's Manual

This document introduces the AMD® SD186ES/SD186EM Demonstration Board, which is an exceptionally small, low-cost product for demonstration of the AMD Am186®ES and Am186®EM microcontrollers

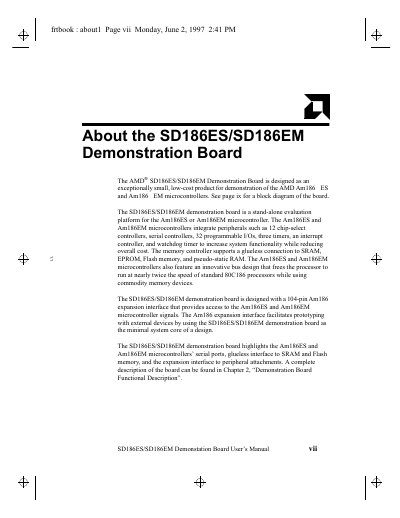

AMD SD186ES/SD186EM Demonstration Board User's Manual - cover page
Brand
SD186ES/SD186EM
Category
microcontrollers
Document type
User Manual
Language
English
Pages
48
File format
PDF
File size
989 KB
Published
09 July, 2012
Updated
30 September, 2023
MD5 checksum
43B7B9E049D0458D559FFF4F3982A79D
PDF
AMD SD186ES/SD186EM Demonstration Board User's Manual PDF

About this manual

The AMD SD186ES/SD186EM Demonstration Board is a stand-alone evaluation platform designed to demonstrate the functionality of the Am186ES and Am186EM microcontrollers. It features a 104-pin expansion interface, 256 Kbyte SRAM, 256 Kbyte Flash memory, and RS-232 serial ports, allowing users to test processor performance and system design simplicity.

What's inside

  • Quick Start
  • Demonstration Board Functional Description
  • Product Support
  • Layout Diagram
  • Schematics
  • Bill of Materials
  • E86MON Software
  • Troubleshooting
  • Technical Support
  • Index

Specifications

MicrocontrollerAm186ES or Am186EM
SRAM256 Kbyte
Flash memory256 Kbyte Am29F010-70
Expansion InterfaceAm186 104-pin
Serial PortsTwo RS-232 with DB-9 connectors

Frequently asked questions

What software is included with the demonstration board?

The board is shipped with the E86MON software installed in the on-board Flash memory.

How do I handle the board safely?

You must take proper ESD precautions when handling the board to avoid damage.

Download PDF (989 KB)
