AMD K6-2E+ Embedded Processor Data Sheet

About this manual

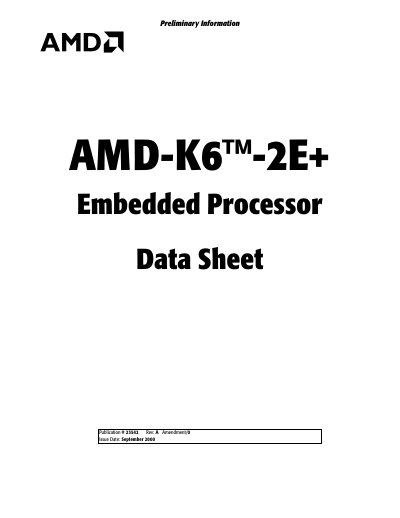

This document is a preliminary data sheet for the AMD-K6™-2E+ Embedded Processor, published in September 2000. It provides comprehensive technical specifications, including process technology details, internal microarchitecture, and supported software environments.

The guide covers extensive topics such as cache organization (L1 and L2), floating-point execution units with MMX and 3DNow! support, system management mode (SMM), test and debug procedures, and detailed electrical data. It also includes pin designations for CPGA and OBGA packages and ordering information.

What's inside

• AMD-K6™-2E+ Embedded Processor Features
• Internal Architecture Overview
• Software Environment and Registers
• Signal Descriptions
• AMD PowerNow! Technology
• Bus Cycles and Timing Diagrams
• Cache Organization and Coherency
• Floating-Point and Multimedia Execution Units
• System Management Mode (SMM)
• Electrical Data and Thermal Design

Specifications

Frequently asked questions

What is the AMD-K6-2E+ Embedded Processor designed for?

It is an embedded processor intended for use in systems where failure could cause personal injury, death, or severe property damage.

How can I contact AMD technical support?

You can send e-mail to [email protected] (in the US and Canada) or [email protected] (in Europe and the UK).

What is the AMD-K6-2E+ Embedded Processor Data Sheet publication number?

The document's publication number is 23542 Rev: A.
