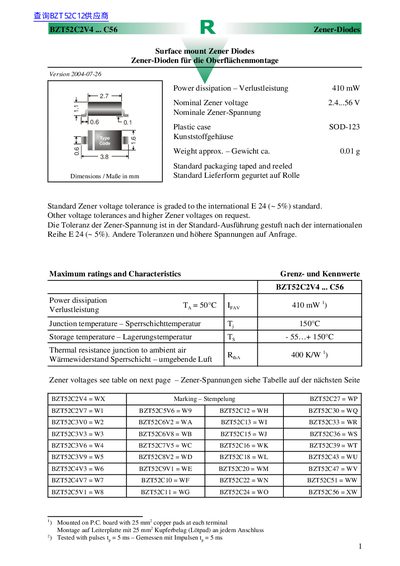

BZT52C2V4 . C56 is a surface mount zener diode with a rated power of 410 mW, plastic case SOD-123, weight approx. 0.01 g, rated zener voltage 2.4.56 V.
This document provides a technical overview of the BZT52C series of small signal silicon Zener diodes designed for surface mounting applications. The components are housed in a plastic SOD-123 case and feature standard voltage tolerances graded to international standards.
The datasheet details maximum ratings such as power dissipation up to 410 mW (at specific conditions) and junction temperatures of 150°C. It includes comprehensive tables listing Zener voltages ranging from 2.4V to 56V, along with their corresponding dynamic resistance, temperature coefficients, and reverse current values at specified test currents.
| Power dissipation (typical) | 410 mW |
|---|---|
| Nominal Zener voltage range | 2.4..56 V |
| Package type | SOD-123 |
| Weight | approx. 0.01g |
| Storage temperature range | -65...+140°C |
The standard Zener voltage tolerance is graded to international series 24, which corresponds to approximately +/- 5%.
They should be mounted on a P.C. board using copper pads of at least 25 mm² at each terminal.
