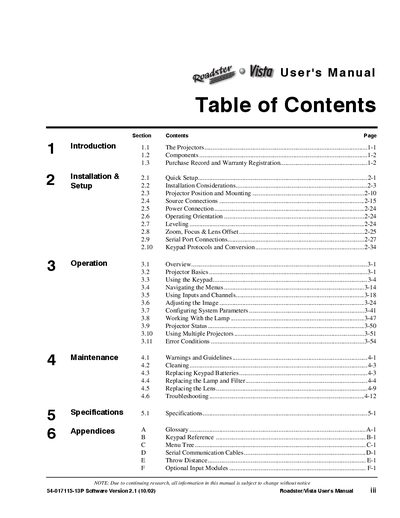

This manual describes the installation, setup, operation, and maintenance of the Roadster/Vista projectors.
The Christie Roadster and Vista projectors are professional quality DMD projectors using Digital Light Processing technology. The Vista models are designed for large audience venues with high ambient light, while the Roadster offers additional ruggedness for frequent transport and outdoor stages. Both models support standard international video formats and interface with IBM-compatible PCs and Macintosh computers.
| Native Resolution (X models) | 1024 x 768 |
|---|---|
| Native Resolution (S models) | 1280 x 1024 |
| Brightness (Vista X3/S3) | 3000 ANSI lumens |
| Brightness (Roadster X9/S9) | 8500 ANSI lumens |
| Contrast Ratio (Roadster X9) | 400:1 ANSI, 500:1 full on/off |
| Power Input (X/S3 and X/S4) | 100-240 VAC, 50-60 Hz |
| Power Input (X/S5 and X/S6) | 200-240 VAC, 50-60 Hz |
| Power Input (X9/S9) | 200-240 VAC, 50-60 Hz |
Included items are an infrared (IR) remote keypad, a power cord, a 9/64" hex socket ball driver, eyebolts (Roadster only), and the User's Manual.
Press and hold the power button on the built-in or remote keypad for approximately 1 second, or press [408].
It allows for smooth and versatile remote control of the lens and recall of lens settings from source-to-source.
Yes, they have built-in RS-232 and RS-422 ports for computer control and networked projectors.
