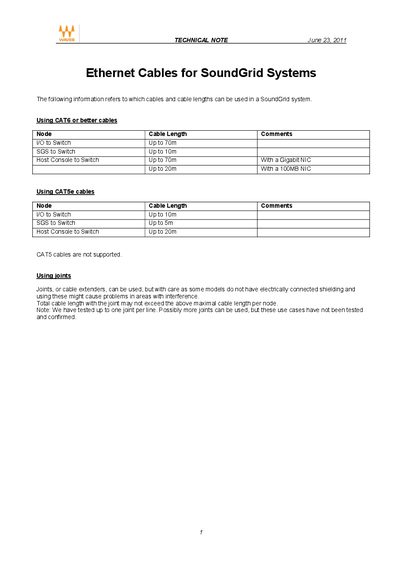

Ethernet Cables for SoundGrid Systems Technical Note

About this manual

This document provides technical guidance on the Ethernet cables suitable for use within a SoundGrid system. It details the recommended cable categories and the maximum allowable cable lengths for different connection points.

The guide distinguishes between performance levels, recommending CAT6 or better cables for optimal results with specific length limits for I/O to Switch (up to 70m), SGS to Switch (up to 10m), and Host Console to Switch connections. It also outlines the limitations when using CAT5e cables.

What's inside

• Cable Types
• Node Cable Lengths
• CAT6 Specifications
• CAT5e Specifications
• Using Joints

Frequently asked questions

What is the maximum cable length for connecting an I/O node to a switch using CAT6 cables?

The maximum length is up to 70m.

What are the supported cable types for SoundGrid Systems?

Supported cables include CAT6 or better and CAT5e, but CAT5 cables are not supported.
