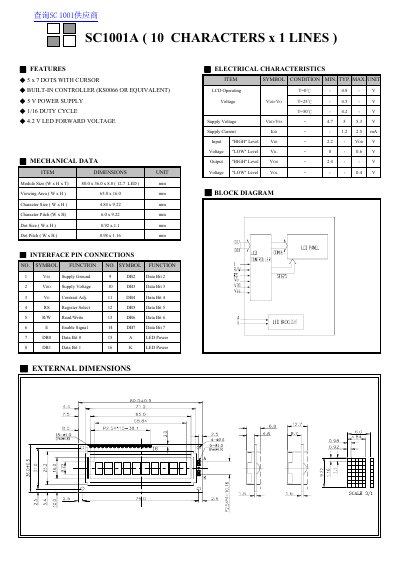

SC1001A is a 10 character x 1 line LCD display module, with 5 x 7 dot matrix, built-in KS0066 or equivalent controller, providing 5V power supply, working temperature of 0℃-50℃, working voltage of 4.2-4.8V, supply current of 1.2-2.5mA.
The SC1001A is a display module with a built-in controller (KS0066 or equivalent) designed for 5V power supply operation. It features a 5x7 dot matrix display with a cursor item symbol and includes a backlight.
| Built-in Controller | KS0066 OR EQUIVALENT |
|---|---|
| Supply Current | 12 mA to 25 mA |
| Module Size | 80.0 x 36.0 x 8.8 mm |
| Viewing Area | 65.0 x 16.0 mm |
| Character Size | 4.84 x 9.22 mm |
The module requires a 5 V power supply.
The module operates at a minimum temperature of 0°C.
