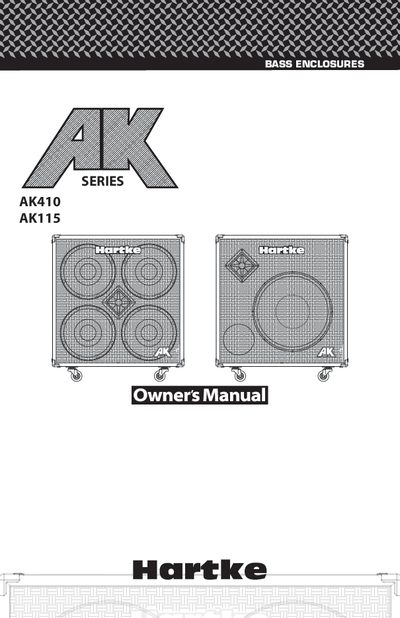

This manual introduces the features and characteristics of the Hartke AK series bass speaker enclosures AK410 and AK115.
This document is the owners manual for the Hartke AK Series bass speaker enclosures, specifically models AK410 and AK115. The AK410 features four 10-inch drivers with a total of 500 watts power handling in a sealed enclosure, while the AK115 utilizes a single 15-inch driver providing 400 watts in a vented enclosure. Both models include a 1-inch titanium compression driver for high frequencies and are constructed from birch plywood.
| Power Handling (AK410) | 500 Watts |
|---|---|
| Power Handling (AK115) | 400 Watts |
| Driver Configuration (AK410) | 4x125 watt 10-inch drivers |
| Enclosure Type (AK410) | Sealed, two chamber |
| Enclosure Type (AK115) | Precision tuned, vented |
Connect the amplifier output to the input of the first cabinet, then connect the extension output of the first cabinet to the input of the second.
The cabinets work well with the Hartke HA3500, HA5500, LH500, LH1000, and Kilo.
