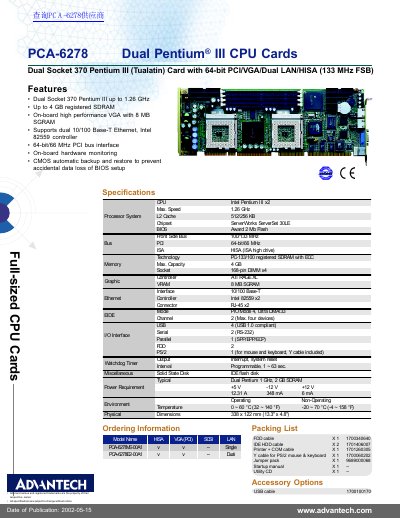

This document describes the features of the PCA-6278 Dual Pentium III CPU Card, including dual Socket 370 Pentium III processors, high-performance VGA, dual 10/100 Base-T Ethernet, etc.
The Advantech PCA-6278 is a full-sized CPU card designed for industrial computer systems. It features dual Socket 370 Pentium III processors with a maximum speed of 1.26 GHz and supports up to 4 GB of registered SDRAM with ECC. The card includes an on-board high-performance ATI RAGE XL VGA controller with 8 MB of SGRAM and supports dual 10/100 Base-T Ethernet interfaces using the Intel 82559 controller. This manual is written in Chinese.
| Processor | Dual Socket 370 Pentium III up to 1.26 GHz |
|---|---|
| Memory Capacity | Up to 4 GB registered SDRAM |
| VGA Memory | 8 MB SGRAM |
| Ethernet | Dual 10/100 Base-T |
| PCI Bus | 64-bit/66 MHz |
| Operating Temperature | 0 ~ 60 °C |
| Dimensions | 338 x 122 mm |
The card can operate in temperatures ranging from 0 to 60 °C.
The 64-bit PCI bus interface operates at 66 MHz.
The card supports up to 4 GB of registered SDRAM.
