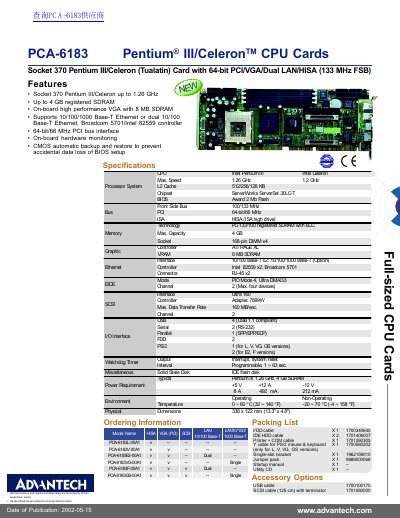

This document provides specifications and ordering information for the Advantech PCA-6183 Pentium III/Celeron CPU Card. The card supports Socket 370 Pentium III/Celeron processors up to 1.26 GHz and includes a 64-bit/66 MHz PCI bus interface.
| Processor | Intel Pentium III / Intel Celeron |
|---|---|
| Max. Speed | 1.26 GHz / 1.2 GHz |
| L2 Cache | 512/256/128 KB |
| Chipset | ServerWorks ServerSet 30LC-T |
| BIOS | Award 2 Mb Flash |
| Front Side Bus | 100/133 MHz |
| PCI Interface | 64-bit/66 MHz |
| ISA Interface | HISA (ISA high drive) |
| Memory Technology | PC-133/100 registered SDRAM with ECC |
| Max. Capacity | 4 GB |
| Graphic Controller | ATI RAGE XL |
| VRAM | 8 MB SDRAM |
| Ethernet Interface | 10/100 Base-T x2; 10/100/1000 Base-T (Option) |
| Ethernet Controller | Intel 82559 x2; Broadcom 5701 |
| SCSI Interface | Ultra 160 Controller Adaptec 7899W |
| Max. Data Transfer Rate | 160 MB/ sec. |
| USB Ports | 4 |
| Serial Ports | 2 (RS-232) |
| Parallel Port | 1 (SPP/EPP/ECP) |
| Watchdog Timer Output | Interrupt, system reset |
| Watchdog Timer Interval | Programmable, 1 ~ 63 sec. |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Physical Dimensions | 338 x 122 mm (13.3" x 4.8") |
The card supports Intel Pentium III/Celeron processors up to 1.26 GHz.
The maximum memory capacity is 4 GB of registered SDRAM.
Yes, it supports 10/100/1000 Base-T Ethernet as an option.
The operating temperature range is 0 ~ 60 °C (32 ~ 140 °F).
