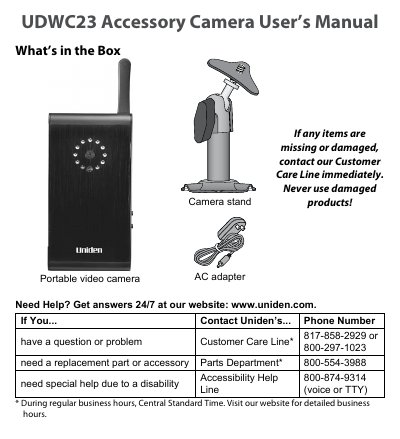

UDWC23 Accessory Camera User’s Manual, describing the accessories and how to use the product.
The Uniden UDWC23 is a portable video camera designed to pair with compatible receivers for wireless video transmission. The device features a built-in stand and an included mounting kit for securing the camera to flat surfaces, walls, or ceilings. It operates using a rechargeable polymer-lithium battery and includes an AC adapter for charging and power.
| Output Image Resolution | 640 x 480 (VGA)/ 320 x 240 (QVGA) |
|---|---|
| Weight | 110 g |
| Dimensions | 115 x 60 x 19 mm |
| Operating Temperature | -10° C to +50° C |
| Input Voltage | 100-240 V AC @ 60 or 50 Hz |
| Operating Voltage | 5 V DC @ 1 Amp |
| Power Consumption | 650 mA max |
| Low Light Sensitivity | 1-8 lux |
The batteries should be allowed to charge completely for about 8 hours before unplugging the camera.
The camera has a transmitting range of 200 meters or 600 feet in an open area with line of sight.
No, the equipment is not waterproof and should not be exposed to rain or moisture.
