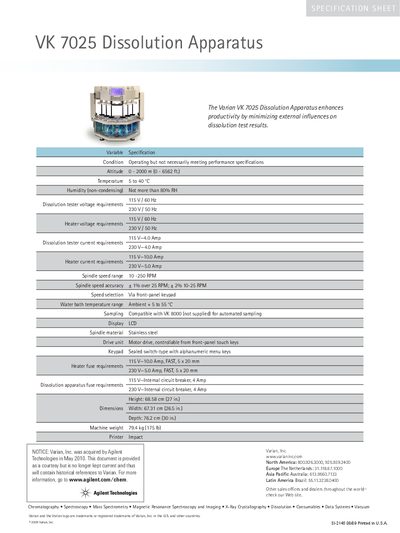

The Varian VK 7025 Dissolution Apparatus enhances productivity by minimizing external influences on dissolution test results.
The Varian VK 7025 Dissolution Apparatus is designed to enhance productivity in dissolution testing by minimizing external influences on test results. It features a variable spindle speed range from 10 to 250 RPM with high accuracy and an LCD display for control via front-panel keys.
The device includes a water bath capable of maintaining temperatures between Ambient + 5°C and 55°C, utilizing a stainless steel drive unit. It is compatible with the VK 8000 system for automated sampling (though not supplied) and requires specific voltage and fuse configurations depending on the region.
| Altitude | 0 - 2000 m (0 - 6562 ft) |
|---|---|
| Operating Temperature | 5 to 40°C |
| Humidity | Not more than 80% RH (non-condensing) |
| Spindle speed range | 10 -250 RPM |
| Water bath temperature range | Ambient + 5 to 55 °C |
| Spindle material | Stainless steel |
| Height | 68.58 cm (27 in.) |
The unit operates at altitudes between 0 and 2000 meters.
The spindle speed can be set between 10 and 250 RPM.
The 115 V heater requires a 10.0 Amp, FAST, 5 x 20 mm fuse.
