Leprecon LD-360 MPX Dimmer User Manual

This document is the LD-360 user manual. It introduces the features and characteristics of the product, including instructions for use, specifications, etc.

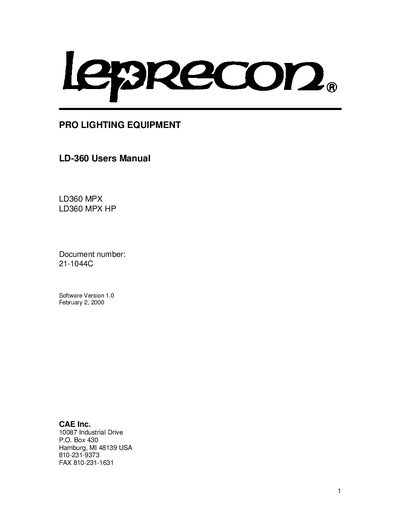

Leprecon LD-360 MPX Dimmer User Manual - cover page
Brand
LD-360
Category
lighting
Document type
User Manual
Language
English
Pages
10
File format
PDF
File size
235 KB
Published
04 July, 2012
Updated
30 September, 2023
MD5 checksum
B815E1A0D48D2410EDABC4B16C9D9C5E
PDF
Leprecon LD-360 MPX Dimmer User Manual PDF

About this manual

The Leprecon LD360 MPX dimmer is a high-quality, low maintenance lighting control device designed for reliable operation. It features dual SCR's and magnetic circuit breakers to enhance reliability and is suitable for various lighting applications. The manual provides instructions on mounting, power connection, load connection, and address selection.

What's inside

  • Introduction
  • Specifications
  • Installation and Use
  • Mounting
  • Power Connection
  • Load Connection
  • Address Selection
  • Service
  • Spare parts list
  • Warrantee Information

Specifications

Power Capacity (MPX)15 Amps
Power Capacity (MPX-HP)15 Amps per line cord
Load Capacity1800 Watts Max/Channel
Control Input3 pin XLR (microphone) cable
Cooling MethodPassively cooled

Frequently asked questions

How is the LD360 MPX dimmer cooled?

The dimmer is passively cooled using no internal fans or other noisy cooling devices.

What is the maximum load capacity per channel?

The maximum load capacity is 1800 Watts per channel.

How do you set the address on the dimmer?

Use two thumbwheel switches to set the start address for the first channel.
