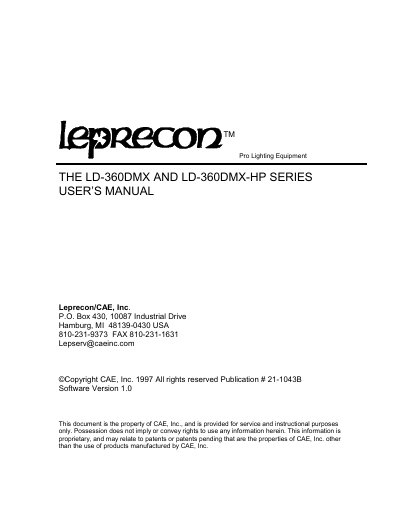

The Leprecon LD-360DMX series consists of small portable dimmers designed for professional lighting applications. These units accept DMX 512 control signals and feature a unique pack-level power limit rather than individual channel limits, allowing for flexible load configurations up to 2400 watts with an approved plug.
The document provides instructions on mounting the passively cooled unit, connecting power and loads, setting addresses via thumbwheel switches, and interpreting status LEDs. It also includes troubleshooting guides, spare parts lists, and a summary of DMX 512 standards.
| Max Load per channel | 1800 watts |
|---|---|
| Total power (standard plug) | 2400 watts |
| Pack Limit (LD360 DMX) | 15 Amps |
| DMX Standard | DMX 512 1990 |
| Max dimmers per system | 512 |
With a standard factory supplied 15 amp power plug, the total pack power limit is 15 Amps.
Yes, the limits can be increased to 20 amps by changing the factory supplied plug to a type approved for higher power.
A fast flash at 4Hz indicates that a signal is present but the pack address is set too high.
A shielded twisted pair rated for data communication at 250K baud is required; microphone cable is not recommended.
