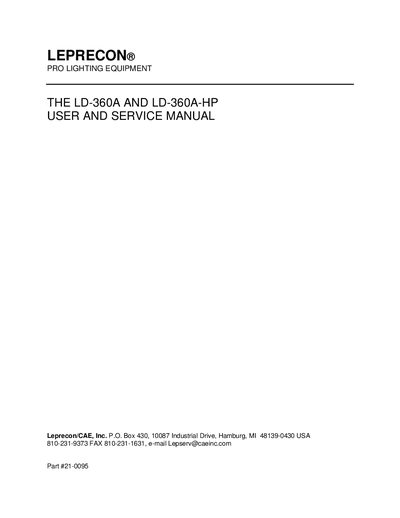

This document is the user and service manual for Leprecon LD-360A and LD-360A-HP, which introduces the features, usage and maintenance methods of the device.
The Leprecon LD-340 and LD-360 are analog dimmer packs designed for professional lighting control. The LD-340 model has a standard power capacity of 1800 watts, while the LD-360 can be upgraded to handle a maximum load of 2400 watts with a properly rated power plug. Both models feature up to six channels, with the ability to draw up to 15 amps (1800 watts) from any single channel or combination of channels without exceeding the total pack capacity.
| Standard Power Capacity | 1800 Watts |
|---|---|
| Maximum Power Capacity (LD-360) | 2400 Watts |
| Control Signal Range | 0 to +10 volts |
| Control Input Impedance | 33K ohms |
| Number of Channels | Up to 6 |
Yes, the LD-360 can safely control a total load of 2400 watts if a properly rated 20 amp power plug is attached in place of the standard U-ground plug.
The packs require a control signal ranging from 0 to +10 volts to vary the output from 0 to 100%.
Using loads totaling more than the rated pack load will void the warranty and may damage the unit due to circuit breaker tripping or overheating.
